3D-4 bridge with 4 single piezo elements
Each string is picked up separately by individual piezo transducers and can be mixed with the regular pickups.
This version has no roller bridge saddles.
Piezo signals can be fed individually or summed up to a preamp via a separate cable.
Also suitable for MIDI systems.
With a cable length of 200mm.

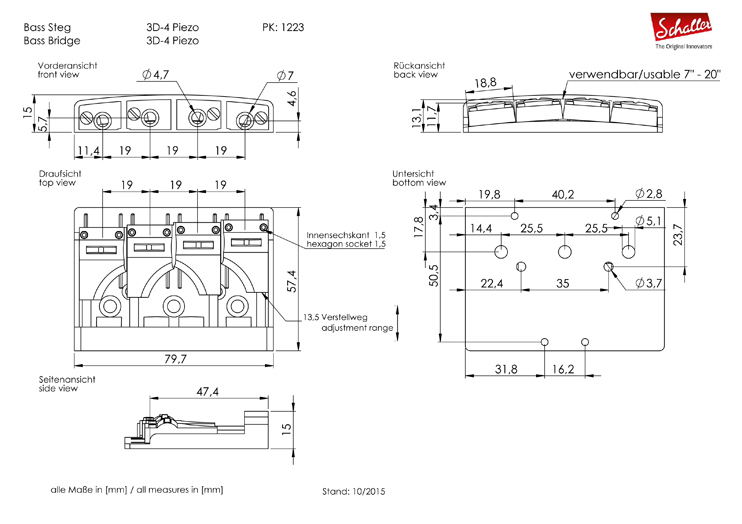

string spacing E-A 53,4 - 62,8mm, string spacing individual 17,8 - 20,9mm, string radius 7 - 20“, minimal G/d string height above body 11,3mm, maximum string gauge 118, weight 192g (200g with accessories), for lefty: yes
scope of supply
3 mounting screws, 1 Allen key 1.5 mm, 3mm baseplate and screws
NOTE: See also Schaller Flagship Preamp for even better sound
